帝国CMS 整合在线图片裁剪插件croppic实现标题图片、文章封面裁剪功能
微wx笑 2020-05-07【帝国CMS】 6 0关键字:
标题图片、文章封面实现了选择文章内容中的图片功能,但是通常文章中的图片都比较大,不做裁剪的话直接拿来做缩略图会导致列表页面加载速度变慢,所以整合了在线图片裁剪插件crop
标题图片、文章封面实现了选择文章内容中的图片功能,但是通常文章中的图片都比较大,不做裁剪的话直接拿来做缩略图会导致列表页面加载速度变慢,所以整合了在线图片裁剪插件croppic实现标题图片、文章封面裁剪的功能。

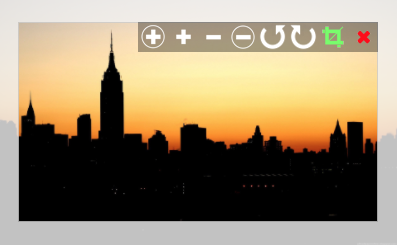

效果如下:
实现上要在“选择文章内容中的图片功能”的基础上,添加代码。
1、进入后台管理系统-》系统》数据表与系统模型》管理数据表,根据你使用的数据表,选择对应的管理字段
2、找到标题图片字段,点击修改系统字段
3、在“输入表单替换html代码”输入框中替换为以下代码:
<?php $ts = ''; if ($_GET["dbg"] == "1"){ $ts = "?ts=".time(); } ?><input name="titlepic" type="text" id="titlepic" value="<?=$ecmsfirstpost==1?"":ehtmlspecialchars(stripSlashes($r[titlepic]))?>" size="45"> <a onclick="window.open('ecmseditor/FileMain.php?type=1&classid=<?=$classid?>&infoid=<?=$id?>&filepass=<?=$filepass?>&sinfo=1&doing=1&field=titlepic<?=$ecms_hashur[ehref]?>','','width=700,height=550,scrollbars=yes');" title="选择已上传的图片"> <img src="../data/images/changeimg.gif" border="0" align="absbottom"></a><script src="/e/extend/croppic/titlepic.js<?=$ts?>"></script> <link href="/e/extend/croppic/titlepic.css<?=$ts?>" rel="stylesheet"><script type="text/javascript" charset="utf-8" src="/e/extend/croppic/jquery.mousewheel.min.js"> </script><script type="text/javascript" charset="utf-8" src="/e/extend/croppic/croppic.js<?=$ts?>"></script><link href="/e/extend/croppic/croppic.css<?=$ts?>" rel="stylesheet"> <a onclick="selectTitlepic(this);" title="选择文章内容中的图片" href="javascript:void(0);"><img src="../data/images/select.png" border="0" align="absbottom">选择文章内容中的图片</a> <a onclick="uploadTitlepic(this);" title="上传一张图片" href="javascript:void(0);"><img src="../data/images/upload.png" border="0" align="absbottom">上传一张图片</a> <img src="../data/images/help.png" border="0" align="absbottom" title="上传的图片需要裁剪,因为上传之后保存在临时目录中"> <div id="divTitlepicCtnr"></div> <div id="divTitlepicCutBox"></div>
为了查看方便这里做了格式化,加了换行,实际使用时如果有换行的话可能导致显示的内容出现换行,不在一行上显示。
4、添加 titlepic.css 样式文件
#divTitlepicCtnr { width: 80%; height: 150px; overflow: scroll; border: 2px solid #4FB4DE; padding: 5px; border-radius: 5px; display:none; position: absolute; background-color: #f6f6f6; } #divTitlepicCtnr img { border: 1px solid #aaa; width:220px; max-height:160px; margin: 5px; cursor: pointer; } #divTitlepicCutBox { width: 200px; height: 115px; overflow: visible; border: 2px solid #4FB4DE; padding: 0px; display:none; position: absolute; z-index:8; background-color: #f6f6f6; }
5、添加 titlepic.js 脚本文件,实现“selectTitlepic”方法,以及截图功能
//selectTitlepic function selectTitlepic(img){ var div = document.getElementById("divTitlepicCutBox"); if (div){ div.style.display = "none"; } var me = UE.getEditor('newstext'); var catcherLocalDomain = me.getOpt('catcherLocalDomain'), catcherActionUrl = me.getActionUrl(me.getOpt('catcherActionName')), catcherUrlPrefix = me.getOpt('catcherUrlPrefix'), catcherFieldName = me.getOpt('catcherFieldName'); var remoteImages = [], imgs = me.document.getElementsByTagName("img"), test = function (src, urls) { if (src.indexOf(location.host) != -1 || /(^\.)|(^\/)/.test(src)) { return true; } if (urls) { for (var j = 0, url; url = urls[j++];) { if (src.indexOf(url) !== -1) { return true; } } } return false; }; for (var i = 0, ci; ci = imgs[i++];) { if (ci.getAttribute("word_img")) { continue; } var src = ci.getAttribute("_src") || ci.src || ""; if (!/^(https?|ftp):/i.test(src) && test(src, catcherLocalDomain)) { remoteImages.push(src); } } if (remoteImages.length) { var div = document.getElementById("divTitlepicCtnr"); if (div == null){ div = document.createElement("div"); div.id = "divTitlepicCtnr"; img.append(div); }else{ div.innerHTML = ""; } for (var i = 0, ci; ci = remoteImages[i++];) { var image = document.createElement("img"); image.src = ci; image.setAttribute("data-src", ci); //image.onclick = inputTitlepic; image.addEventListener("click",inputTitlepic); div.append(image); } div.style.display = "block"; } } function getSafeBase64(str){ var b64str = Base64.encode(str); //把斜杠“/”替换为减号“-”,加号“+”无需替换 return b64str.replace(/\//ig, "-").replace(/\+/ig, "_"); } function getTitle(len){ var title = $("#title").val(); var text=title.replace(/[^\x00-\xff]/g,"aa"); if (len < 1 || text.length <= len){ return getSafeBase64(title); } var tmpstr = ""; var lenstr = 0; var halflen = (len - len % 2) / 2; for (var i = 0; i < title.length; i++){ var c = title.charCodeAt(i); tmpstr += title.charAt(i); //单字节加1 if ((c >= 0x0001 && c <= 0x007e) || (0xff60<=c && c<=0xff9f)) { lenstr++; } else { lenstr+=2; } if (lenstr >= halflen + len % 2){ break; } } if (lenstr >= len){ return getSafeBase64(tmpstr); } halflen = len - lenstr; lenstr = 0; var tmpstr2 = ""; for (var i = title.length - 1; i > -1; i--){ var c = title.charCodeAt(i); tmpstr2 = title.charAt(i) + tmpstr2; //单字节加1 if ((c >= 0x0001 && c <= 0x007e) || (0xff60<=c && c<=0xff9f)) { lenstr++; } else { lenstr+=2; } if (lenstr >= halflen){ break; } } return getSafeBase64(tmpstr + tmpstr2); } function inputTitlepic(evt){ var ipt = document.getElementById("titlepic"); if (ipt && evt){ ipt.value = evt.srcElement.getAttribute("src"); } var div = document.getElementById("divTitlepicCtnr"); if (div){ div.style.display = "none"; } div = document.getElementById("divTitlepicCutBox"); if (div){ div.style.display = "block"; var croppicContainerPreloadOptions = { //uploadUrl:'/e/extend/croppic/img_save_to_file.php', cropUrl:'/e/extend/croppic/img_crop_to_file.php', cropData:{ "title":getTitle(30) }, loadPicture:ipt.value, enableMousescroll:true, doubleZoomControls:false, imgEyecandy:true, imgEyecandyOpacity:0.5, smallControls:true, loaderHtml:'<div class="loader bubblingG"><span id="bubblingG_1"></span><span id="bubblingG_2"></span><span id="bubblingG_3"></span></div> ', onBeforeImgUpload: function(){ console.log('onBeforeImgUpload') }, onAfterImgUpload: function(){ console.log('onAfterImgUpload') }, onImgDrag: function(){ console.log('onImgDrag') }, onImgZoom: function(){ console.log('onImgZoom') }, onBeforeImgCrop: function(){ console.log('onBeforeImgCrop') }, onAfterImgCrop:function(rep){ var ipt = document.getElementById("titlepic"); if (ipt){ ipt.value = rep.url; } }, onReset:function(){ $("#divTitlepicCutBox").hide(); this.destroy();}, onError:function(errormessage){ console.log('onError:'+errormessage) } } var cropContainerPreload = new Croppic('divTitlepicCutBox', croppicContainerPreloadOptions); } } function uploadTitlepic(){ var div = document.getElementById("divTitlepicCtnr"); if (div){ div.style.display = "none"; } div = document.getElementById("divTitlepicCutBox"); if (div){ div.style.display = "block"; var croppicContainerPreloadOptions = { uploadUrl:'/e/extend/croppic/img_save_to_file.php', cropUrl:'/e/extend/croppic/img_crop_to_file.php', cropData:{ "title":getTitle(30) }, //loadPicture:ipt.value, enableMousescroll:true, doubleZoomControls:false, imgEyecandy:true, imgEyecandyOpacity:0.5, smallControls:true, loaderHtml:'<div class="loader bubblingG"><span id="bubblingG_1"></span><span id="bubblingG_2"></span><span id="bubblingG_3"></span></div> ', onBeforeImgUpload: function(){ console.log('onBeforeImgUpload') }, onAfterImgUpload: function(){ console.log('onAfterImgUpload') }, onImgDrag: function(){ console.log('onImgDrag') }, onImgZoom: function(){ console.log('onImgZoom') }, onBeforeImgCrop: function(){ console.log('onBeforeImgCrop') }, onAfterImgCrop:function(rep){ var ipt = document.getElementById("titlepic"); if (ipt){ ipt.value = rep.url; } }, onReset:function(){ $("#divTitlepicCutBox").hide(); this.destroy();}, onError:function(errormessage){ console.log('onError:'+errormessage) } } var cropContainerPreload = new Croppic('divTitlepicCutBox', croppicContainerPreloadOptions); } }
6、上传在线图片裁剪插件croppic相关文件。
croppic插件的使用演示及相关文件下载,参考:简单功能强大的jQuery在线图片裁剪插件croppi
